- Forging and Pressing
- Heat treatment
- Machining
- Heat treatment
(Carburizing and Induction hardening) - Grinding
- Assembling
- Inspection
Forging and Pressing
| Forging press (1,600t) | 1 |
|---|---|
| Air stamp hammer (0.5t - 1.3t) | 4 |
| Punching press (100t - 300t) | 9 |
| Billet heater (250 - 500kWH) | 5 |
| Cutting machine (100t - 300t) | 3 |
| Knuckle joint press (630t - 800t) | 5 |
| Shot-blast machine | 5 |
| Shot-peening machine | 2 |
| Bonding processor | 1 |

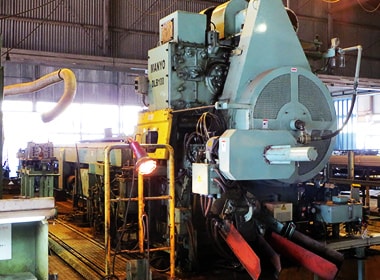

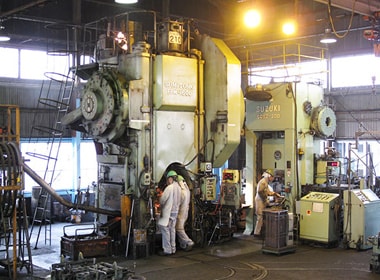

Hot forging press

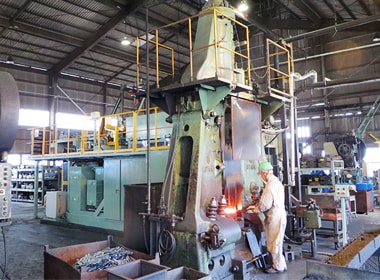

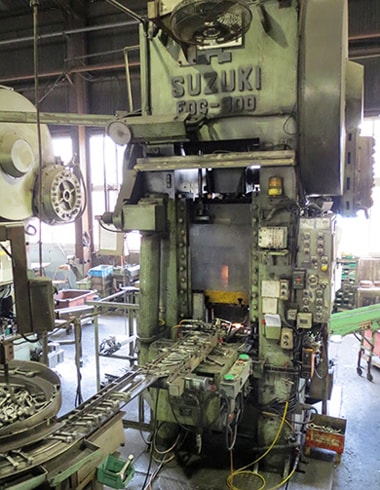

Hot forging hammer
Cutting machine

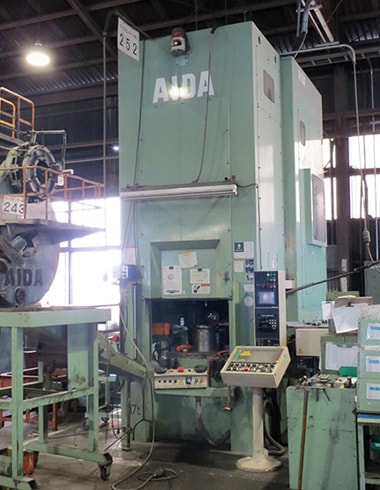

300t press machine

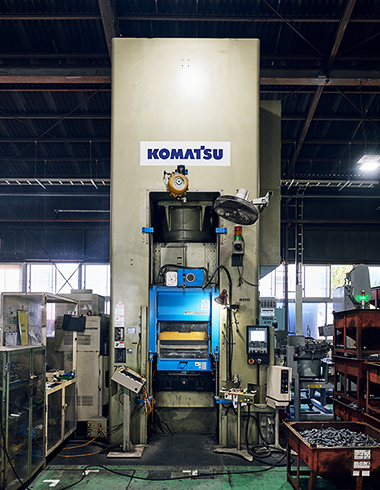

800t press machine
630t press machine
Products manufactured with those facilities
Heat treatment
| Automated continuous normalizing furnace | 1 |
|---|---|
| Annealing furnace (batch type) | 2 |

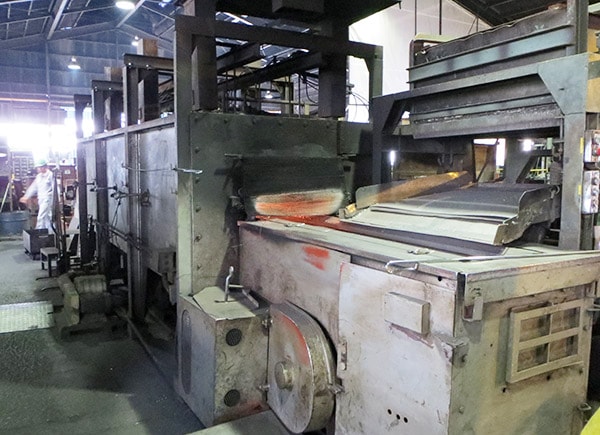

Normalizing furnace
Annealing furnace
Products manufactured with those facilities
Machining
| NC Lathe | 60 |
|---|---|
| Vertical machining center | 36 |
| Specialty machine (including transfer machine) | 105 |
| Broaching machine (3t, 5t) | 2 |
| Hob machine | 3 |
| Thread rolling machine （6t, 15t, 16t） | 16 |

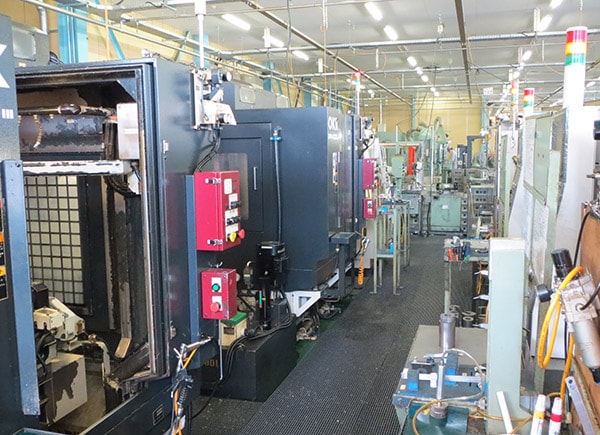

One piece crankshaft machining line
Transfer machine
Robotized specialty line
Products manufactured with those facilities
Heat treatment (Carburizing and Induction hardening)
| Induction hardening equipment (40, 80, 150kWH) | 4 |
|---|---|
| Carburizing furnace | 5 |
| Atmosphere gas generator | 2 |
| Tempering furnace | 3 |
| Cleansing machine | 3 |

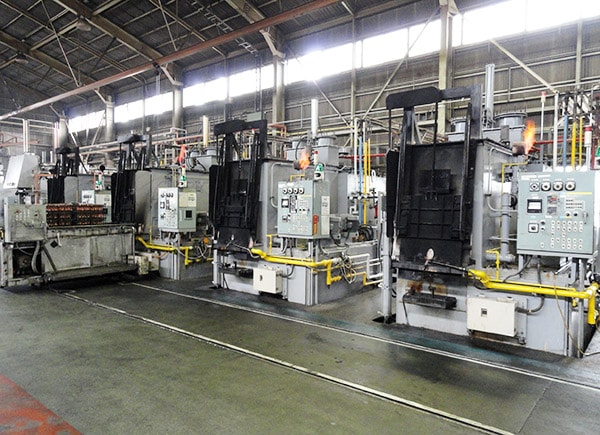

Carburizing furnace

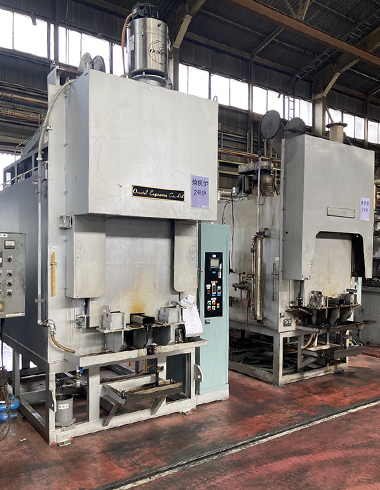

Tempering furnace
Induction hardening equipment
Products manufactured with those facilities
Grinding
| NC cylindrical grinding machine (polygon grinder) | 3 |
|---|---|
| Cylindrical grinding machine (angular slide) | 30 |
| Cylindrical pin grinding machine | 3 |
| Inner bore grinding machine | 33 |
| End-face grinding machine | 8 |
| Plain surface grinder | 5 |
| Honing machine | 20 |
| Rotary surface grinder | 1 |
| Super finishing machine | 4 |
Automatic outer diameter grinding line
Automatic inner bore honing line
End-face grinding machine

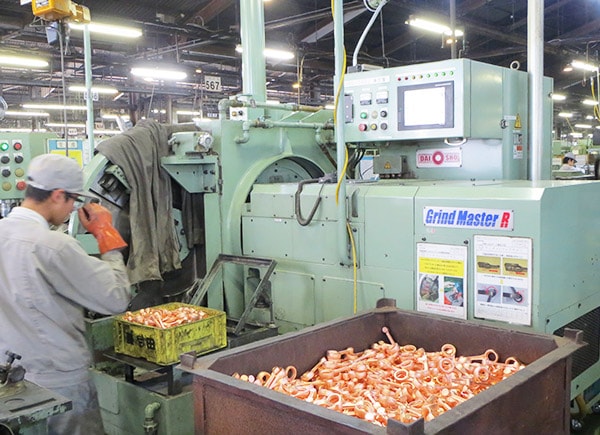

Outer diameter grinding line
Plain surface grinding specialty machine

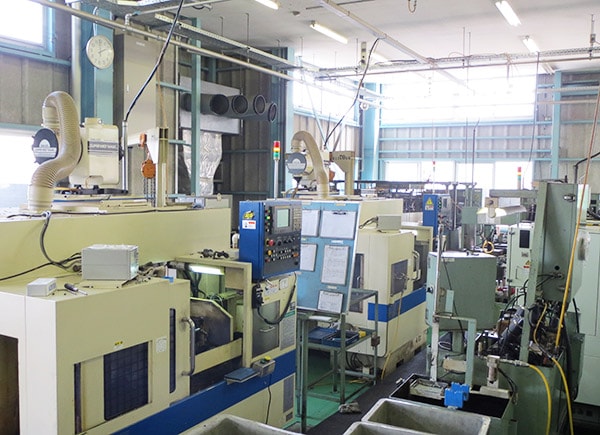

Inner bore grinding line
Products manufactured with those facilities
Assembling
| Assembly robot | 1 |
|---|---|
| Automatic super sonic washing machine | 1 |
| Hydraulic assembly press machine | 7 |
Assembly press machine

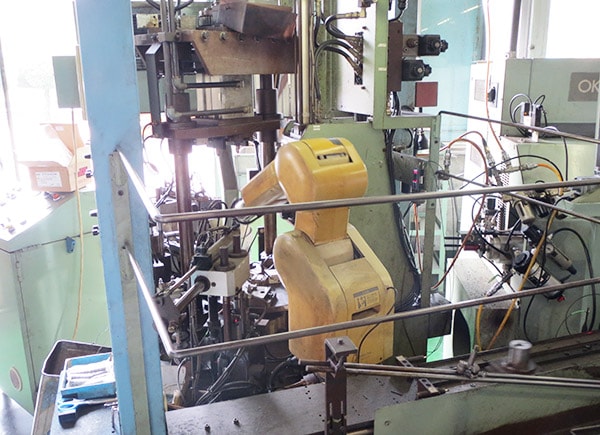

Automatic assembly machine

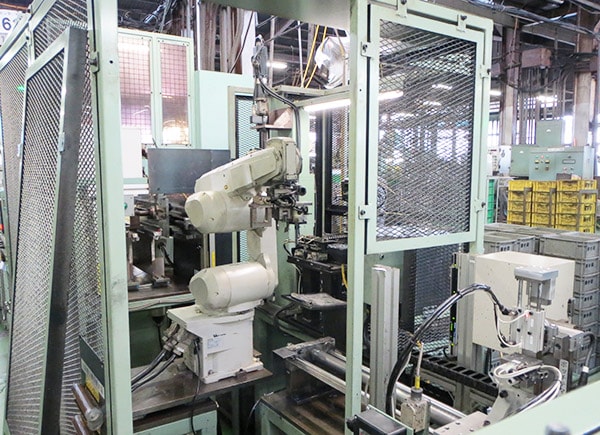

Robotized assembly machine
Products manufactured with those facilities
Inspection equipment
| 3-D measuring equipment | 1 |
|---|---|
| Magnaflux detector | 2 |
| Rockwell hardness tester, others | 9 |
| Vickers hardness tester | 3 |
| Metallographic microscope | 1 |
| Surface roughness tester | 3 |
| Roundness and straightness measurement machine | 1 |
| All-purpose microscope | 2 |
| Shape measurement machine | 1 |
| 2-D Image measurement equipment | 2 |
| 3-D Image measurement equipment | 1 |
3-D measuring equipment
Roundness and straightness measurement machine

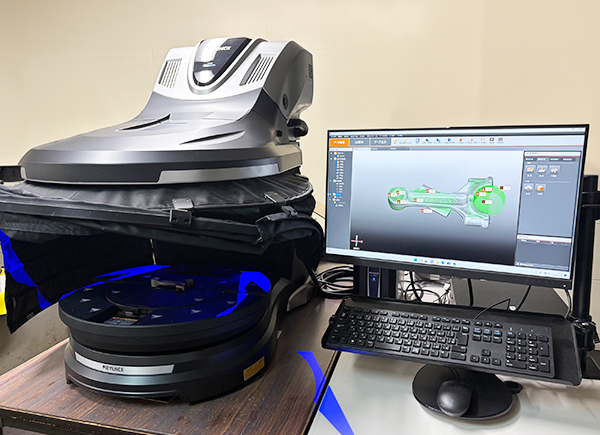

Image measurement equipment
Metallographic microscope
Shape measurement machine

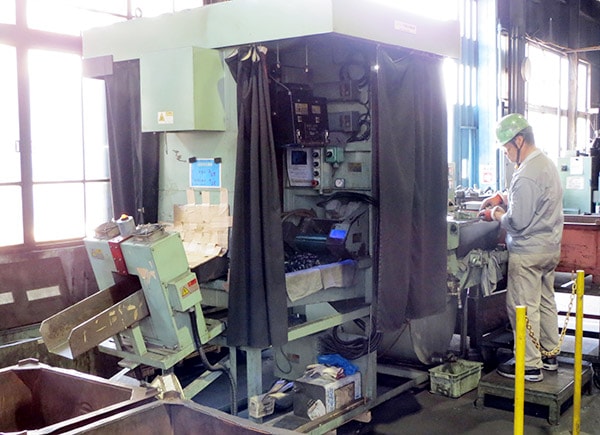

Magnaflux detector
